The Crucial Logic of the Return Circuit
In the hierarchy of automotive diagnostics, the ground strap is the uncelebrated backbone of the entire electrical architecture. While many drivers and novice technicians immediately suspect a dying battery or a complex ECU failure when electronics behave erratically, the seasoned mechanic knows that a circuit is only as strong as its return path. Modern vehicles rely on the chassis and engine block as the primary ground plane; if the braided copper strap connecting these components to the negative terminal corrodes, the entire system suffers from high-resistance bottlenecks. This leads to ‘mystery gremlins’—intermittent issues that defy standard OBD-II scanning—making it a vital part of any comprehensive tune up or electrical auto repair strategy.
Symptoms That Look Like Expensive Component Failures
A compromised ground strap often manifests as a collection of unrelated faults. You might notice flickering instrument clusters, hard starting, or even erratic shifting in modern automatic transmissions that utilize electronic solenoids. Because electricity seeks the path of least resistance, a poor ground can cause current to ‘backfeed’ through other circuits, such as the brake service sensors or cooling fan relays, leading to phantom error codes. This phenomenon is frequently confused with major hardware failure, yet it can often be resolved with the 15 dollar battery terminal move that restores basic electrical continuity.
Why Does a Weak Ground Mimic a Failing Alternator or Starter?
The physics of high-amperage draw are unforgiving. During a startup event, the starter motor requires hundreds of amps to turn the crankshaft. If the ground strap is frayed, the voltage drop across the resistance point prevents the starter from receiving sufficient power, resulting in a slow crank or a series of rapid clicks. According to SAE International (Society of Automotive Engineers) technical standards, even a few milliohms of unintended resistance can cause significant thermal stress and voltage instability in 12V systems. In many cases, drivers are sold a new alternator when the real culprit was a $15 piece of oxidized copper. To avoid these pitfalls, utilize a 10 dollar multimeter trick to perform a voltage drop test between the engine block and the negative battery post.
Restore Electrical Integrity Without the Dealership Price Tag

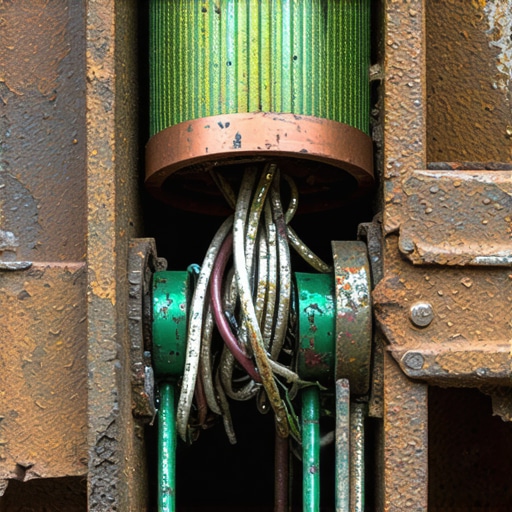

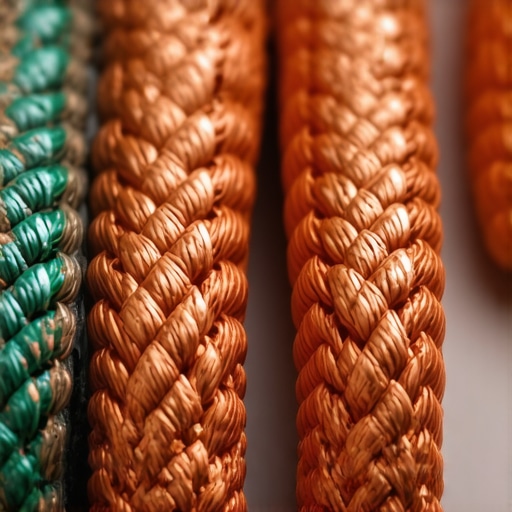

Proactive maintenance is the best defense against these phantom issues. When performing a seasonal tune up, visual inspection of the ground straps should be non-negotiable. Look for green corrosion or ‘crunchy’ textures in the braided wire. Replacing a failing strap is an entry-level task that requires only basic tools, yet it provides the same stability as a professional-grade auto repair. For those unsure of their diagnostic skills, learning mechanic tips for diagnosing common auto problems can save hundreds in labor costs. If you are struggling with intermittent electrical glitches, consider inspecting your ground planes before authorizing expensive module replacements. Do you have a story about a simple fix solving a massive headache? Explore our guide on how to choose a skilled mechanic you can trust to ensure your local shop prioritizes logic over part-swapping.
Dirty Power and the Death of Precision Sensors
While a failed ground strap can stop a car from starting, a partially degraded connection is often more insidious because it introduces ‘noise’ into the vehicle’s sensor network. Modern engine management relies on millivolt-level signals from components like the Mass Airflow Sensor (MAF) or the Throttle Position Sensor (TPS). When the ground path is compromised, the reference voltage ‘floats,’ causing the ECU to receive inaccurate data. This often results in a stumbling engine that leaves drivers baffled, yet it can frequently be resolved by the 10 dollar cleaning move that restores sensor clarity. In many cases, what looks like a failed component is actually a victim of signal bias caused by high resistance at the engine block. Professional-grade auto repair demands that we verify the integrity of these signal grounds before condemning expensive electronic hardware, especially when dealing with the 12 dollar sensor fix that often cures a persistent rough idle.
Could a Loose Bolt be Sabotaging Your Transmission Shift Points?
The intersection of mechanical hardware and electronic control is nowhere more evident than in the modern automatic transmission. These units use pulse-width modulated (PWM) solenoids to manage fluid pressure and gear timing. If the ground strap between the transmission case and the chassis is oxidized, the solenoids may not fully engage or could operate with a slight delay. This lead to harsh engagements, hunting for gears, or 3 reasons your transmission jerks into reverse that might have nothing to do with internal clutch wear. According to technical white papers from Robert Bosch GmbH, the pioneers of modern vehicle networking, signal integrity within the Controller Area Network (CAN-bus) is highly dependent on a stable reference voltage. Without it, the data packets shared between the engine and transmission modules can become corrupted, triggering a ‘limp home’ mode that most shops will quote as a multi-thousand dollar rebuild. Before you panic, ensure the mating surfaces of your ground wires are wire-brushed to bare metal and secured with dielectric grease to prevent future oxidation.
Stop Chasing Phantom Codes with Signal Ground Verification
Diagnostic frustration usually peaks when a mechanic clears a fault code only for it to reappear within twenty miles. This cycle of ‘part-darts’—throwing new sensors at a problem without a diagnosis—is a symptom of ignoring the circuit’s return path. When a ground is weak, the computer may trigger a P0420 or a generic circuit-low code because it cannot see the expected voltage drop across a load. This is precisely why your check engine light keeps coming back after you clear it. To master this, every owner should invest in the 20 dollar scanner to monitor live data stream values; look for ‘LTFT’ (Long Term Fuel Trim) numbers that jump erratically when you wiggle the battery cables. This simple stress test identifies loose connections that a static tune up might miss. If you’ve noticed your dash lights flickering during gear shifts, tell us about it in the comments below or share this guide with a fellow DIYer who is tired of chasing electrical ghosts. Have you ever found a simple loose nut that fixed a ‘dead’ car? Practical experience is the best teacher in the world of high-tech auto repair.
Protect Sensitive Semiconductors from Destructive Voltage Spikes
When you ignore a frayed ground, you aren’t just risking a no-start condition; you are actively shortening the lifespan of every semiconductor in your vehicle. Modern electrical components are designed to operate within a very narrow voltage window, typically 12.6 to 14.4 volts. However, when the ground path becomes resistive, inductive loads like the A/C compressor clutch or the high-speed cooling fan can create ‘flyback’ voltage. This happens because the magnetic field in these coils collapses, and without a clean, low-resistance path to the negative terminal, that energy surges back into the wiring harness. These transients can exceed 50 volts for a few milliseconds, which is more than enough to degrade the delicate internal gates of your Engine Control Module (ECM) over time. This is why a professional auto repair tech uses an oscilloscope to look for ‘noise’ on the ground line that a standard voltmeter simply cannot see.
Why does your infotainment screen glitch when the cooling fan kicks on?
This is a classic ‘nuance’ query that many drivers experience but rarely associate with a simple copper strap. When a high-draw component like a radiator fan engages, it pulls a massive amount of current. If the engine-to-chassis ground is weak, the voltage for the entire cabin electronics system can dip momentarily, causing the digital bus to ‘stutter.’ This is often misdiagnosed as a failing head unit or a software bug. In reality, it is a hardware-level failure of the return circuit. If you are performing a tune up on a modern vehicle with extensive touchscreen interfaces, checking the primary ground points for ‘voltage drop’ while these fans are running is a critical step to ensure system stability. Professional guidelines from the Mobile Air Climate Systems Association (MACS) indicate that stray current resulting from these grounding bottlenecks is a leading cause of premature failure in high-end HVAC control modules.
Stop Electrolysis from Eating Your Radiator from the Inside Out
One of the most destructive and least-understood consequences of a bad ground strap is electrolysis. If the engine block loses its low-resistance path to the battery, the electrical current will look for any other conductor to get home—and your engine coolant is an excellent electrolyte. As electricity flows through the liquid, it strips ions from the aluminum of your radiator, heater core, and cylinder heads. This chemical reaction turns your cooling system into a giant battery, causing pinhole leaks to appear in brand-new components within weeks. You might think you need a cooling system brake service or a flush, but what you actually need is a 10-gauge copper wire to stop the chemical erosion.
Can a missing ground strap actually cause your coolant to turn acidic?
Yes, and the process is terrifyingly efficient. When current passes through the coolant, it breaks down the glycol and inhibitors, rapidly dropping the pH level of the fluid. This creates a highly acidic environment that dissolves gaskets and seals from the inside. Many DIYers find themselves in a loop of replacing leaking water pumps and radiators without realizing the engine block is ‘floating’ electrically. To test for this, set your digital multimeter to DC millivolts, place the negative lead on the battery post, and dip the positive lead directly into the coolant (without touching the metal radiator neck). If you see anything more than 0.3 volts, your engine is literally consuming itself because of a failed ground strap. Have you ever seen a radiator that looked like Swiss cheese? Drop a comment below if you’ve experienced this ‘phantom’ leak phenomenon.
The Professional Way to Restore a Low-Resistance Connection

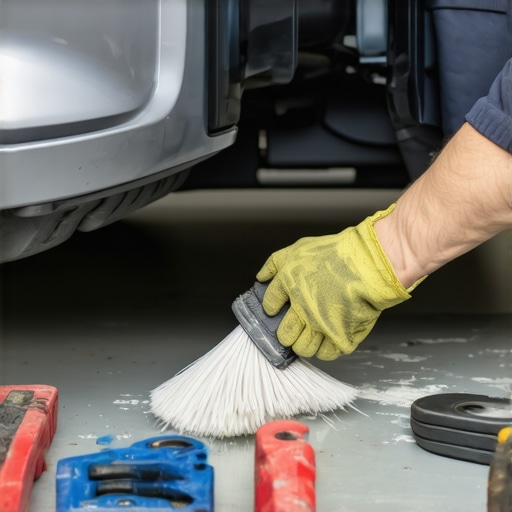

Restoring a ground isn’t as simple as tightening a bolt over a layer of paint. To achieve the zero-ohm connection required for modern auto repair, you must achieve ‘gas-tight’ metal-to-metal contact. This involves using a wire brush or a specialized grounding tool to remove all paint, rust, and oxidation from the chassis mounting point until it shines like a new nickel. Once the surface is prepped, the application of a high-quality dielectric grease or a specialized conductive paste is essential. This doesn’t just help the flow; it seals the connection from oxygen and road salt, ensuring that your tune up efforts last for years rather than months. When selecting replacement straps, many enthusiasts opt for tinned-copper braiding, which offers superior flexibility and surface area compared to standard insulated wire, allowing it to wick away heat and vibration without cracking under the stress of daily driving. The secret to a permanent fix lies in the preparation of the mating surface, particularly where the strap meets the aluminum of the transmission case, where galvanic corrosion is most likely tooccur due to the interaction of dissimilar metals. When you bolt a copper strap directly to an aluminum transmission housing, you are creating a miniature battery. Moisture and road salt act as the catalyst, accelerating oxidation that creates a high-resistance barrier exactly where you need conductivity. A smart mechanic knows that using a tinned terminal or a specific anti-corrosion compound is the only way to ensure the auto repair lasts through a harsh winter. This is especially vital during a comprehensive tune up on high-mileage European imports where aluminum-to-steel contact points are ubiquitous.
Shielding Your Modern CAN-Bus from Disruptive EMI
Modern vehicles are rolling computer networks, and the Controller Area Network (CAN-bus) is incredibly sensitive to Electromagnetic Interference (EMI). If your engine ground strap is degraded, the engine block acts as a massive antenna for ignition noise. This ‘dirty’ energy can bleed into the twisted-pair data lines, causing communication timeouts between the ECU and the ABS module. This often triggers a ‘U-code’ (Network Communication) fault that leads many technicians to recommend an unnecessary brake service or module replacement. By ensuring a low-impedance path back to the battery, you effectively ‘sink’ this EMI, protecting the integrity of every data packet sent across the chassis.
Is your luxury car’s ghost in the machine just a ground loop problem?
Ground loops occur when multiple components are grounded at different physical locations, creating a slight voltage potential between them. In the world of high-end car audio or advanced driver assistance systems (ADAS), this tiny difference can manifest as an audible hum in the speakers or ‘static’ in the backup camera feed. According to the National Institute for Automotive Service Excellence (ASE), identifying these parasitic paths is one of the most challenging aspects of electrical auto repair. The fix isn’t usually more parts; it’s consolidating ground points to a single, clean bus bar that eliminates the potential difference.
Upgrade Your Primary Cables Before Adding High-Draw Accessories
If you have added an aftermarket winch, a high-output alternator, or a massive stereo system, the factory ground strap is likely a bottleneck. This is known in the enthusiast community as the ‘Big Three’ upgrade: replacing the battery-to-chassis, chassis-to-engine, and alternator-to-battery wires with 0-gauge oxygen-free copper. Ignoring this during a performance tune up can lead to ‘voltage sag’ that starves your fuel pump of the amperage it needs under wide-open throttle. Don’t let a thin factory wire limit your engine’s potential. Have you checked your voltage drop under full accessory load lately? Share your multimeter readings in the comments below and let’s troubleshoot those stubborn electrical gremlins together!
Expert Insights & Advanced Considerations
Stop Trusting Your Ohmmeter for High-Amperage Circuits
A standard continuity test with a multimeter is a frequent trap in auto repair. An ohmmeter uses a tiny battery to send a milliamp-level signal; a ground strap can pass that signal while still failing under the 400-amp load of a starter motor. Always perform a dynamic voltage drop test under load to see the real story. This is why many DIYers miss the culprit—they see a ‘0.0’ reading and assume health when the circuit is actually failing. To master this, utilize our 10 dollar multimeter trick for real-world diagnostics.
Watch Out for the Heat-Induced Resistance Loop
Electrical resistance in copper increases as temperature rises. A vehicle that starts perfectly in the morning might leave you stranded after a highway run because engine heat increased the resistance in a frayed strap beyond the operational threshold. If you are dealing with a ‘heat soak’ no-start condition, don’t immediately blame the starter solenoid. Inspect the primary engine ground for thermal degradation. Applying these essential tune-up tips can help you catch these temperature-sensitive failures before they leave you at a gas station pump.
#IMAGE_PLACEHOLDER_E#
How a Weak Ground Fools Smart Charging Systems
Modern vehicles use sophisticated Battery Management Systems (BMS) that monitor current flow via a sensor on the negative cable. If you have a loose ground or poor connection at the chassis, the ECU may overcharge the battery or disable the alternator entirely, misinterpreting the voltage instability as a battery fault. This is a common pitfall during a tune up on late-model vehicles. Ensuring the integrity of these points is just as vital as any brake service for maintaining vehicle longevity and preventing expensive module replacements.
Curated Expert Resources
SAE International Technical Library
This is the gold standard for engineering specifications. Their papers on electromagnetic compatibility (EMC) provide the data-driven proof of why grounding matters in a digital vehicle environment.
Bosch Automotive Handbook
Often called the ‘mechanic’s bible,’ this resource offers detailed schematics and theoretical explanations of 12V return paths and signal grounding strategies used by original equipment manufacturers.
ASE Training Manuals (Electrical Systems)
The A6 certification prep materials offer practical, real-world troubleshooting workflows that emphasize the importance of the ‘negative side’ of the circuit and how to diagnose it without specialized lab equipment.
Final Expert Perspective
True mastery of auto repair begins when you stop looking only at the ‘power’ side of a circuit and start respecting the return path. A compromised ground strap is more than a nuisance; it is a silent killer of alternators, sensors, and even radiators through the process of electrolysis. Whether you are performing a routine tune up or troubleshooting a complex ‘limp mode’ event, validating your ground integrity should always be your first move to avoid the cycle of part-darts. For more advanced troubleshooting, see our mechanic tips for diagnosing common auto problems. Have you discovered a hidden ground issue that saved your car from the scrap heap? Join the conversation and share your diagnostic wins with our community of professionals.
